HOLE OPENER TGM

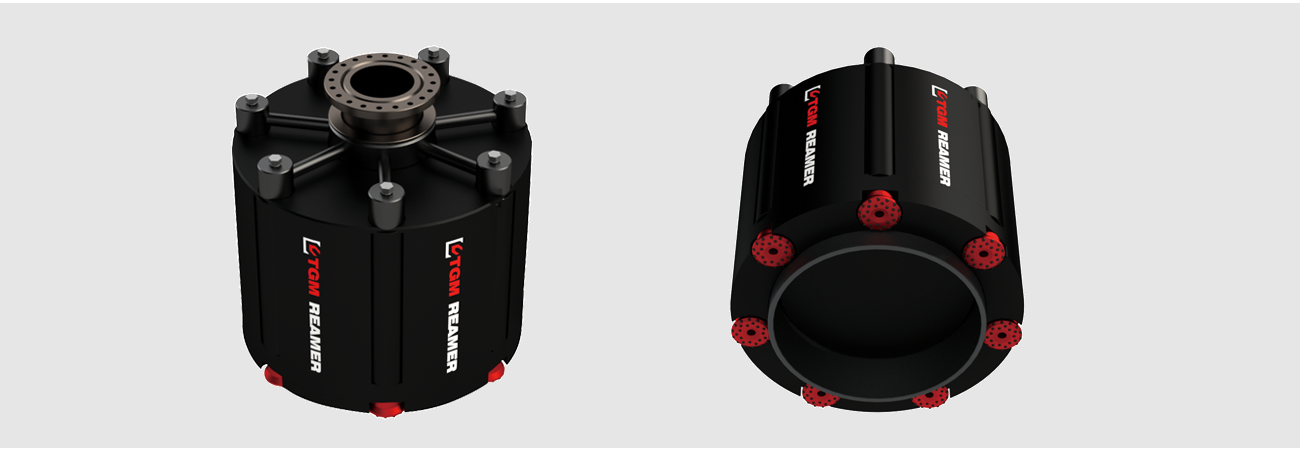

Hole opener TGM hammers are designed for reaming of predrilled pilot holes.
HOLE OPENER TGM Specification
| Model | No. of Hammers | Hammer Type | Pilot Diameter | Reamer Diameter | Air Requirements | |||
| MM | INCH | MM | INCH | SCFM | M³/MIN | |||
| 1219X1676 | 7 | TM80 | 1219 | 48.0 | 1676 | 66.0 | 3570 | 101.1 |
| 1029X1981 | 13 | TM80 | 1029 | 40.5 | 1981 | 78.0 | 6630 | 187.7 |
*AIR REQUIREMENTS PER HAMMER - 510 CFM@150 PSI OR 695 CFM@200 PSI
*Other size of Hole Opener TGM Hammer is available upon customer’s request.
